PCX-M Series - PP Monoblock Pumps

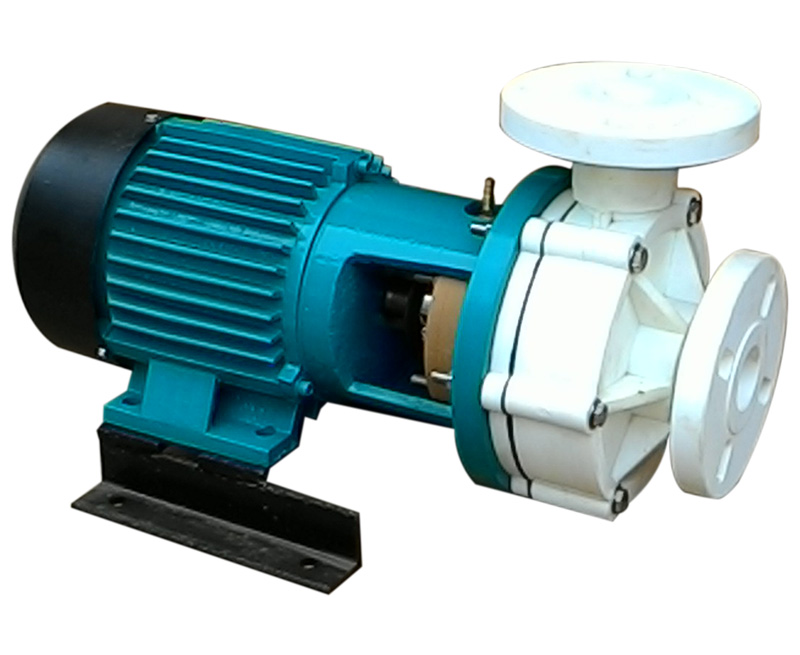

Series PCX - M PP pumps with Mechanical Seal in monoblock construction
Monoblock type PP pumps which are small, economical and easy to use and maintain. Ideal to for transfer of corrosive liquids, pharmaceutical products, food and dairy products, chemical transfer and filtration etc. These pumps are specially designed for economic application with high capacity and discharge . Std. pumps are available with GFT Mechanical Seal.
All PCX - M series pumps are available in Monoblock design with std. TEFC motors OR Flameproof motors.
Material of Construction : Poly Propylene
Operating Temp : Max. upto 70 deg C
| Model | Size ( S X D) | HP | All Pumps at 2900 RPM | |||||||
| PCX 100 M | 25 x 25 | 1 | 4 | 6 | 8 | 10 | 11 | 12 | 13 | Head ( Mtrs ) |
| 14 | 12 | 9 | 6 | 5 | 3 | 0 | Capacity ( M3/hr ) | |||
| PCX 120 M | 40 x 32 | 2 | 5 | 8 | 10 | 12 | 15 | 16 | 18 | |
| 29 | 26 | 24 | 20 | 12 | 8 | 2 | ||||
| PCX 130 M | 50 x 40 | 3 | 5 | 8 | 12 | 15 | 18 | 20 | 23 | |
| 32 | 30 | 24 | 18 | 12 | 8 | 0 | ||||
| PCX 160 M | 75 x 40 | 5 | 10 | 14 | 18 | 22 | 25 | 27 | 31 | |
| 35 | 31 | 27 | 20 | 15 | 10 | |||||
