PP Monoblock Pumps

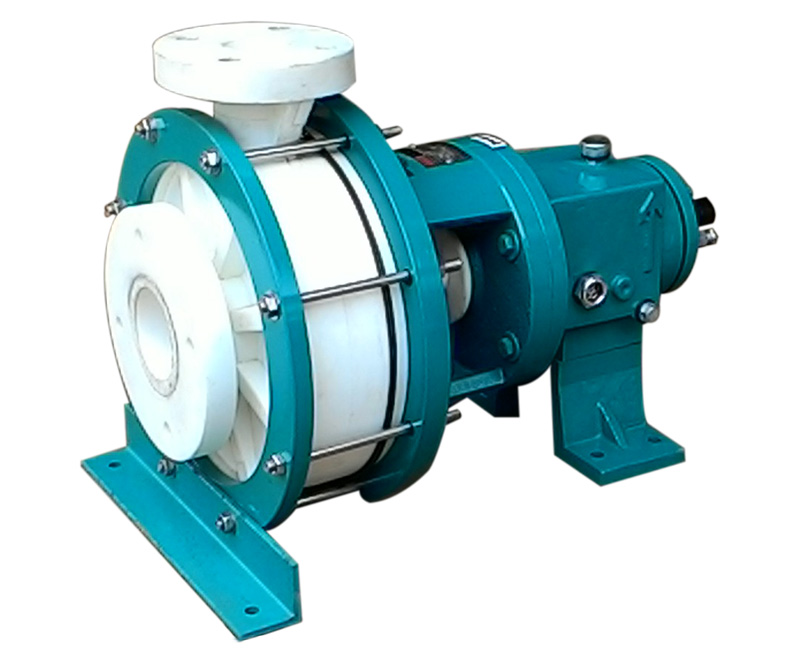

Series PCX – Process Pumps in Poly Propylene with Mechanical Seal
PCX series pumps are Horizontal Centrifugal Volute Casing type Process pumps with Mechanical Seal. Highly reliable and sturdy design pumps for handling corrosive liquids. Better efficiency due to computer aided design of Volute casing, Impeller etc resulting in lower power consumption and smoother operation. Heavy duty bearing box and heavy duty shaft ensures longer life of the pump.
Pumps are available with Teflon Bellow type Mechanical Seal with GFT v/s Ceramic face combination OR with pure Teflon gland packing with High Alumina Ceramic or SS 316 shaft sleeve.
These pumps are ideally suitable for handling corrosive chemicals, acidic water with mild impurities, pickling plant chemicals, effluents and boiler descaling chemicals.
All PCX series pumps are available in Bare shaft pump only. Base Frame & Coupling can be provided for mounting motor directly.
Material of Construction : Filled Poly Propylene , PVDF (polyvinylidene fluoride)
Operating Temp : PP upto 70 deg C . PVDF upto 100 deg C
Features & Application
- Made from 100% virgin PP for best resistance against corrosion and long lastings.
- Computer aided casting & impeller design for smootj hydraulic passage that gives best efficiency & performance.
- useful for handling corrosive chemicals in various industries and different application.
- Standard design ensures interchangebility of spares
Range
- Capacity upto 100 m3/hr.
- Head upto 45 mtrs.
- Moc in Poly Propylene, PVDF
- Sealing Teflon Bellow type or Gland Packing
PCX Series Flow Chart
| Model | Suction | Delivery | HP | 5 | 8 | 10 | 12 | 14 | 18 | 20 | 22 | 26 | 30 | 34 | 38 |
| PCX 100 | 25 | 25 | 1 | 12 | 9 | 6 | 3 | 0 | |||||||
| PCX 120 | 40 | 32 | 2 | 18 | 24 | 22 | 18 | 12 | 0 | ||||||
| PCX 130 | 50 | 40 | 3 | 35 | 38 | 26 | 22 | 18 | 12 | 8 | 4 | 0 | |||
| PCX 160 | 75 | 40 | 5 | 40 | 30 | 35 | 32 | 29 | 26 | 22 | 17 | 13 | 4 | ||
| PCX 170 | 75 | 50 | 7.5 | 58 | 54 | 50 | 46 | 42 | 38 | 34 | 30 | 22 | 12 |
1440 RPM models
| Model | Suction | Delivery | HP | 5 | 8 | 10 | 12 | 14 | 18 | 20 |
| PCX 30 | 50 | 40 | 2 | 25 | 18 | 12 | 5 | 0 | ||
| PCX50 | 75 | 40 | 3 | 42 | 30 | 23 | 15 | 11 | 0 | |
| PCX 55 | 75 | 50 | 5 | 42 | 37 | 28 | 20 | 5 | 0 | |
| Head in meters | ||||||||||
| Capacity in m3/hr | ||||||||||
