CFS Series - SS 316 Sanitary Pumps

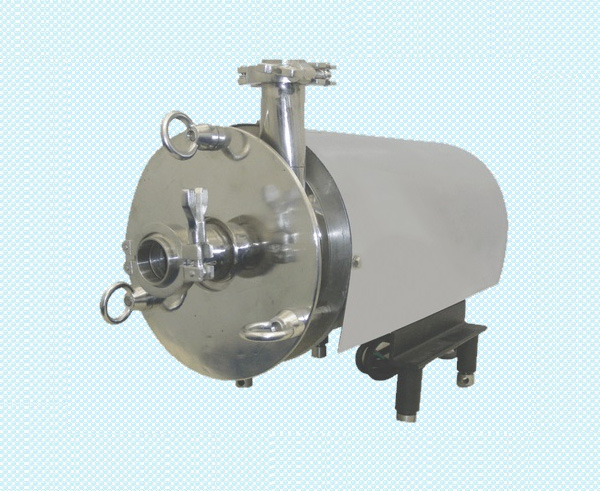

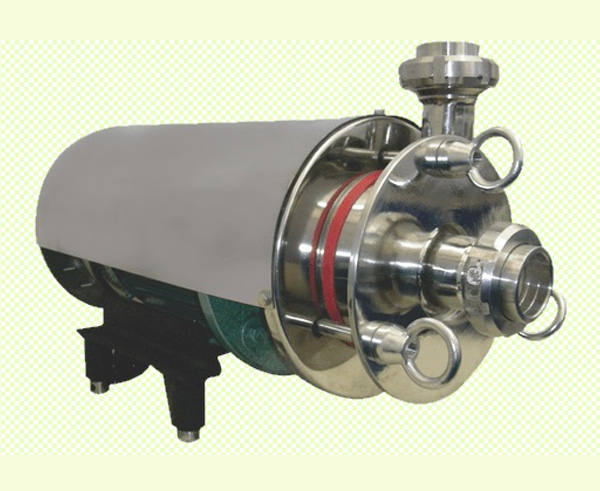

Series CFS – Sanitary Design Centrifugal Pumps with S.S. Shroud
Complete SS-316 Sanitary Design Centrifugal Pump Made From Food Grade Rolled Steel Material. All Wetted Parts Are Through Grinded And Finished. Front Open able Suction Casing with SMS Type or TC/TC Type Suction X Delivery. Sealing By Highly Durable Mechanical Seal of Silicon with SS-316 Internals.CIP Design for Use in Food & Parma Industry.
To Transfer Liquid Like Milk, Butter Milk, Sugar Syrup, Soft Drink,Pharma Syrup, Mineral Water, Fruit Juice, Beer etc.
All CFS series pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.
Material of Construction : SS 316
Operating Temp : Std. 110 deg.
Features & Application
- Simple & Front open design
- All contact parts of SS-316 material
- Best in class efficiency with high head and high capacity
- Available in monoblock & Bare type
- Available With SS Shround And Legs
Range
- Capacity from 20 LPM to 2000 LPM
- Head upto 60 mtrs.
Head in Meters Discharge in LPM at 2900 RPM
| Model | H.P. | Size | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 |
| CFS-2 | 0.5 | 25 x 25 | 100 | 90 | 80 | 60 | 40 | |||||||||
| CFS-2 A | 0.5 | 40 x 40 | 200 | 140 | 75 | 20 | ||||||||||
| CFS-3 | 1 | 25 x 25 | 170 | 150 | 130 | 110 | 90 | 70 | 50 | 25 | ||||||
| CFS-3 A | 1 | 40 x 40 | 250 | 225 | 190 | 150 | 100 | 50 | ||||||||
| CFS-4 A | 1.5 | 40 x 40 | 170 | 150 | 125 | 100 | 60 | 20 | ||||||||
| CFS-4 B | 1.5 | 50 x 40 | 250 | 220 | 180 | 135 | 90 | 30 | ||||||||
| CFS-5 A | 2 | 50 x 40 | 250 | 225 | 195 | 160 | 120 | 70 | 20 | |||||||
| CFS-5 B | 2 | 50 x 50 | 300 | 270 | 225 | 170 | 120 | 60 |
Head in Meters Discharge in LPM at 2900 RPM
| Model | H.P. | Size | 6 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 45 | 48 | 54 | 56 |
| CFS-6 A | 3 | 50 x 40 | 230 | 200 | 160 | 120 | 80 | 40 | ||||||||
| CFS-6 B | 3 | 65 x 50 | 370 | 320 | 250 | 190 | 110 | 30 | ||||||||
| CFS-7 A | 5 | 50 x 40 | 270 | 235 | 200 | 150 | 100 | |||||||||
| CFS-7 B | 5 | 65 x 50 | 650 | 570 | 480 | 380 | 250 | 120 | ||||||||
| CFP-8 A | 7.5 | 50 x 40 | 320 | 260 | 210 | 165 | 110 | 50 | ||||||||
| CFP-8 B | 7.5 | 65 x 50 | 750 | 620 | 500 | 380 | 220 | 100 |
